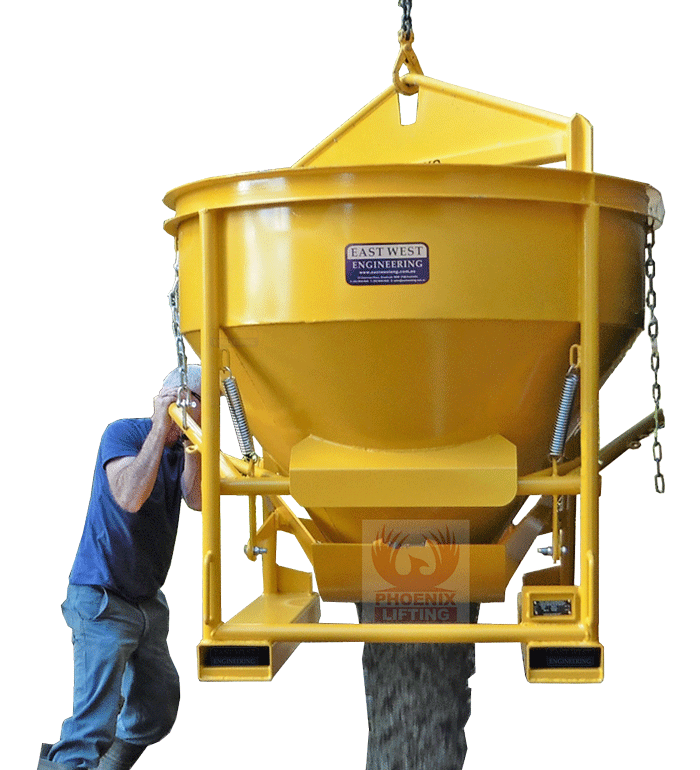

Concrete Kibble

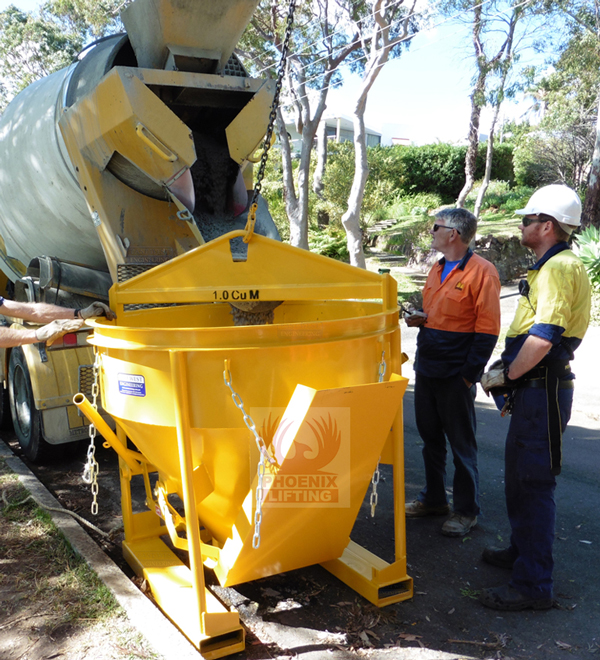

The CKM Concrete Kibble is designed for easy transfer of concrete on site by overhead crane.


Features

• Lightweight, yet heavy duty

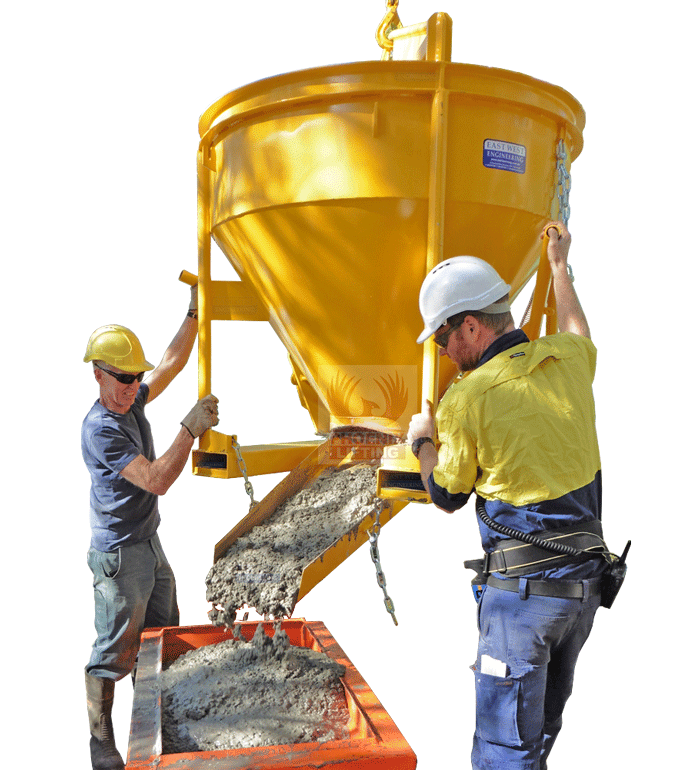

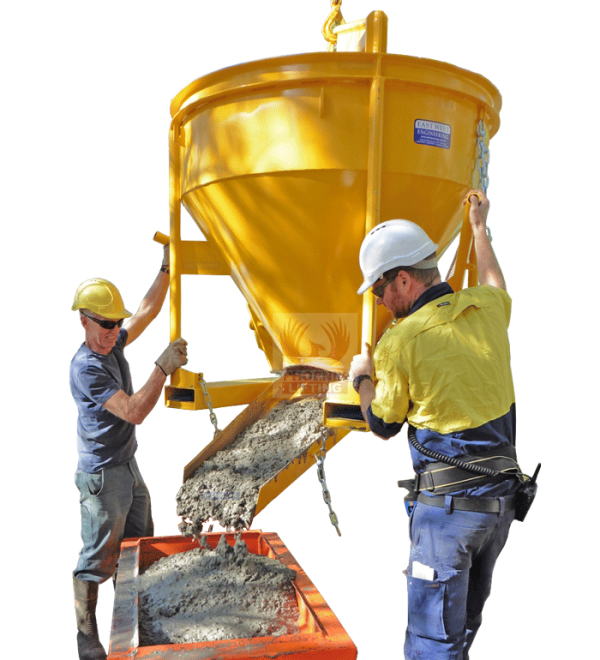

• Adjustable chute allows discharge from the bottom or side of unit

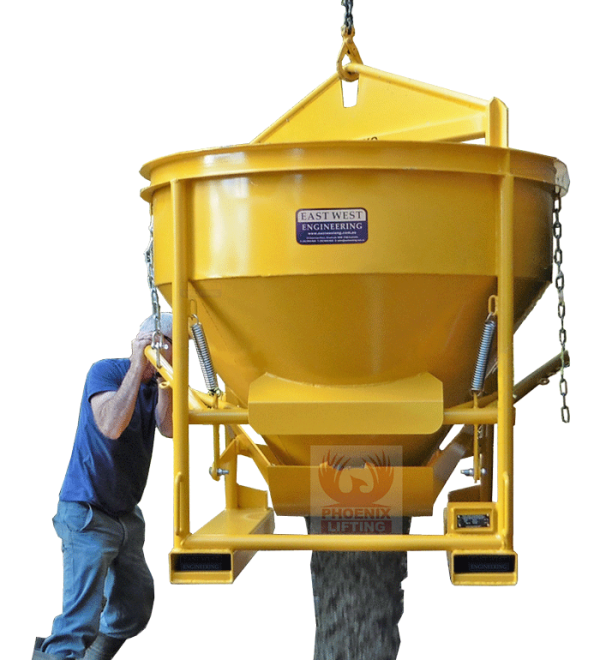

• Lever operated from either side, for flexibility of use
• Fitted with fork pockets for transport around the work site
• Hydraulic Kibble Option (HPP-REMOTE) available to remotely control kibble
• Enamel paint finish

Specifications

Model Volume Capacity (cu.m) Working Load Limit (kg) Filling Height (mm) Overall Dimensions (mm) Unit Weight (kg)
CKM05 0.5 1500 1175 1630 x 1255 x 1500 275
CKM10 1.0 3000 1320 1760 x 1655 x 1705 320

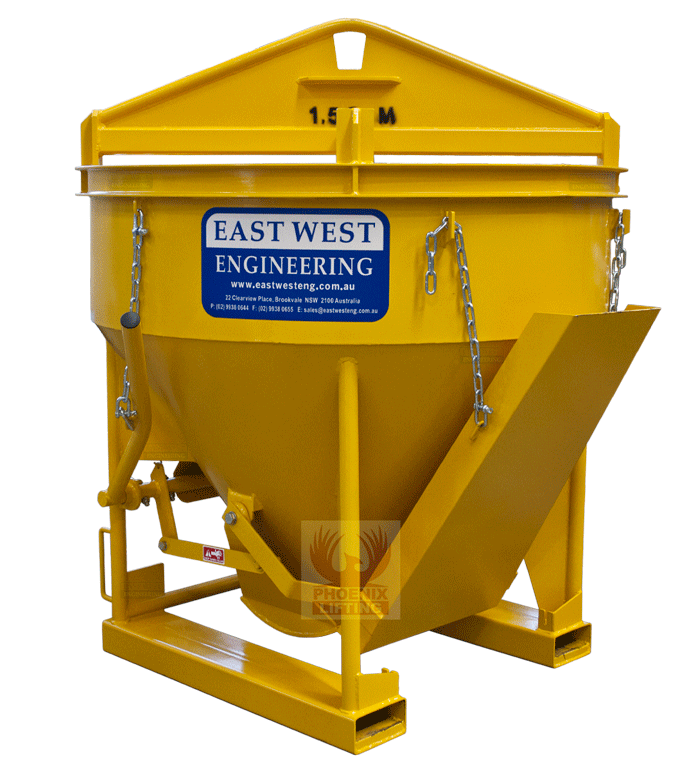

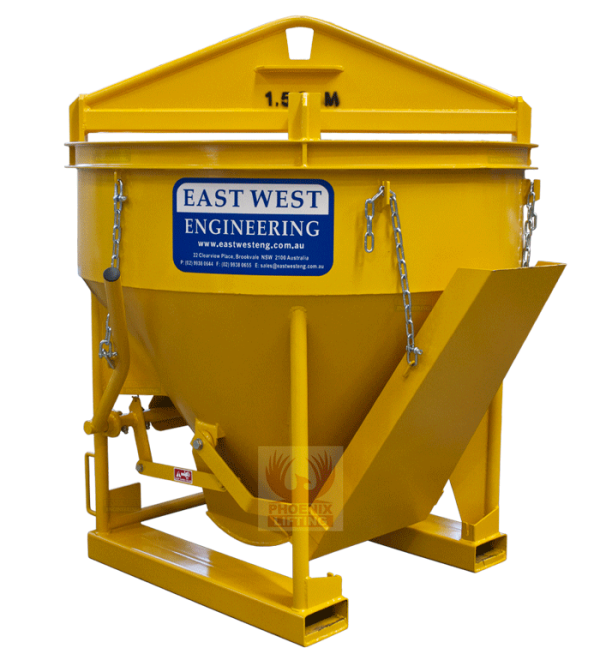

CKM15 1.5 4000 1510 1850 x 1655 x 1970 415
