Features
• Supplied standard with 5 lifting position
• Fitted with 2 safety swivel hooks
• Custom lengths and capacity available on request
• Enamel paint finish

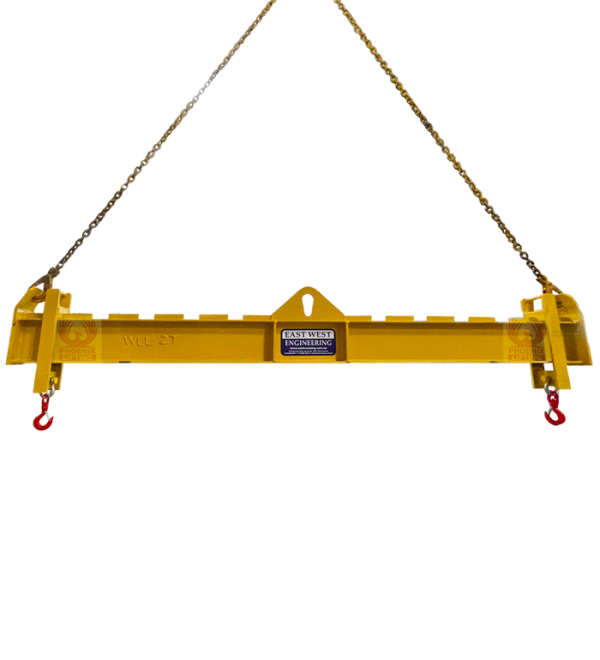

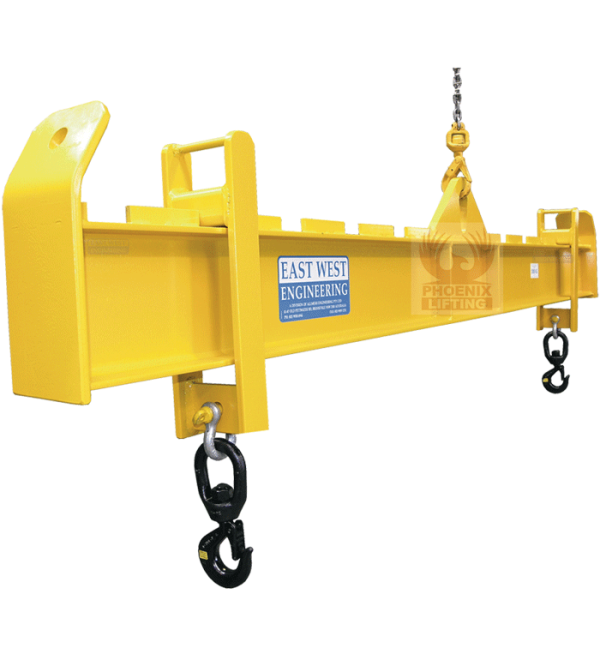

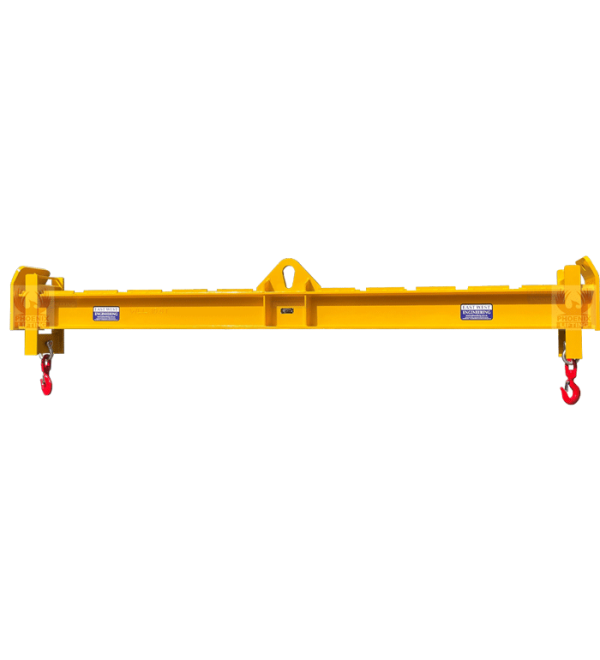

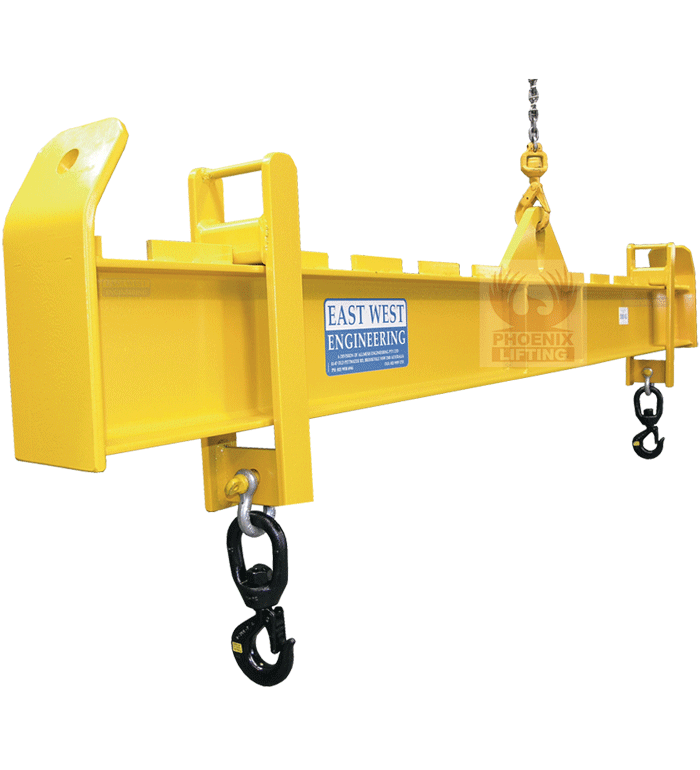

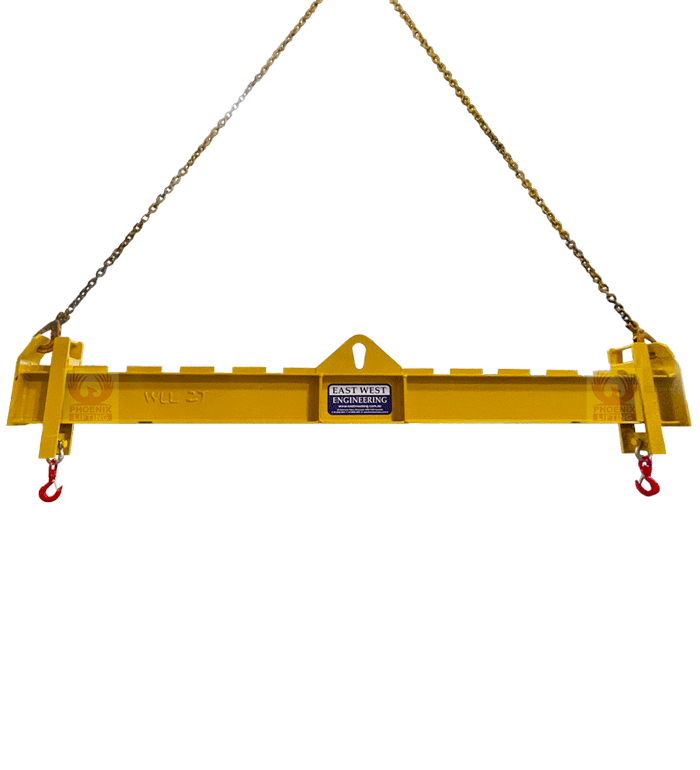

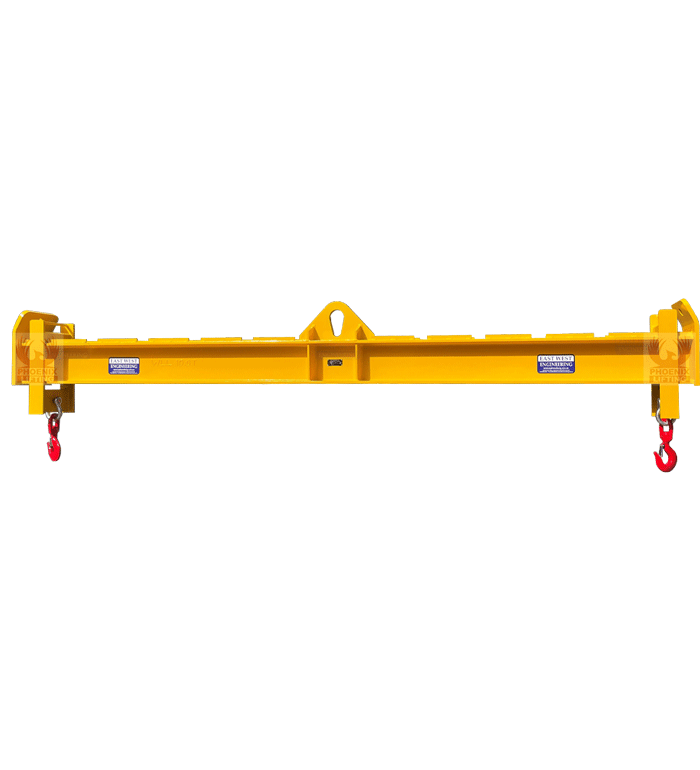

The CSB Spreader Beams are designed in a range of capacities and lengths to suit any lifting application required by overhead crane.
• Supplied standard with 5 lifting position
• Fitted with 2 safety swivel hooks
• Custom lengths and capacity available on request
• Enamel paint finish
Model | Working Load Limit (kg) | Spread Range (mm) | Unit Weight (kg) |
---|---|---|---|
CSB2X1 | 2000 | 160 – 950 | 31 |
CSB2X2 | 2000 | 590 – 2000 | 70 |
CSB3X3 | 3000 | 710 – 3000 | 110 |
CSB5X4 | 5000 | 1140 – 4000 | 300 |
CSB10X4 | 10000 | 1130 – 4000 | 480 |
CSB10X7 | 10000 | 1730 – 7000 | 1350 |
